这里我们探讨数据在磁盘上的物理组织 对索引的开销造成的影响。
一般来讲,主键值彼此接近的行的物理位置也会靠在一起。(表会很自然地按主键顺序聚簇)
在某种情况下,使用这个索引可能很不错,但是在另外一种情况下它却不能很好的工作。从生产系统转储数据并加载到开发系统时,也应该考虑这点。看完了本篇文章的实验,你就能回答这类问题:”为什么在这台机器上运行的完全不同?难道它们不一样吗?“是的,它们确实不一样的,因为数据在磁盘上的物理组织不一样。

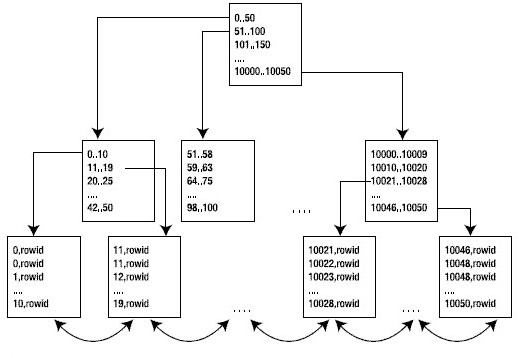

本文讨论的是最长用的B*树索引。下图是典型的B*树索引布局
实验一、探究磁盘上的物理组织对索引的影响
本文使用数据库是oracle11g,分析或查询工具是sqlplus。可以看到sqlplus将每一行都查询出来了,所以统计的时间是准确的。如果使用toad或者pl/sql developer这种工具,首次只会返回部分数据,在这种客户端看到的时间是不准确的。
创建一张表
SQL> create table colocated(x int, y varchar2(80));
表已创建。
1
2
3
有插入数据,注意,x是有顺序的。
SQL> begin
2 for i in 1..100000
3 loop
4 insert into colocated(x,y)
5 values(i, rpad(dbms_random.random, 75, '*'));
6 end loop;
7 end;
8 /
1
2
3
4
5
6
7
8
然后对表创建主键,主键选择x列
SQL> alter table colocated
2 add constraint colocated_pk
3 primary key(x);
表已更改。
1
2
3
4
5
这里我们使用oracle标准内置包DBMS_METADATA,查询这个表的定义,可以看到创建的表中有这段(CONSTRAINT “COLOCATED_PK” PRIMARY KEY (“X”) USING INDEX), 默认使用我们创建的主键作为索引。
SQL> SET LONG 5000;
SQL> select dbms_metadata.get_ddl('TABLE', 'COLOCATED') FROM DUAL;
DBMS_METADATA.GET_DDL('TABLE','COLOCATED')
--------------------------------------------------------------------------------
CREATE TABLE "SYS"."COLOCATED"
( "X" NUMBER(*,0),
"Y" VARCHAR2(80),
CONSTRAINT "COLOCATED_PK" PRIMARY KEY ("X")
USING INDEX PCTFREE 10 INITRANS 2 MAXTRANS 255 COMPUTE STATISTICS
STORAGE(INITIAL 65536 NEXT 1048576 MINEXTENTS 1 MAXEXTENTS 2147483645
PCTINCREASE 0 FREELISTS 1 FREELIST GROUPS 1 BUFFER_POOL DEFAULT FLASH_CACHE DE
FAULT CELL_FLASH_CACHE DEFAULT)
TABLESPACE "SYSTEM" ENABLE
) PCTFREE 10 PCTUSED 40 INITRANS 1 MAXTRANS 255 NOCOMPRESS LOGGING
DBMS_METADATA.GET_DDL('TABLE','COLOCATED')
--------------------------------------------------------------------------------
STORAGE(INITIAL 65536 NEXT 1048576 MINEXTENTS 1 MAXEXTENTS 2147483645
PCTINCREASE 0 FREELISTS 1 FREELIST GROUPS 1 BUFFER_POOL DEFAULT FLASH_CACHE DE
FAULT CELL_FLASH_CACHE DEFAULT)
TABLESPACE "SYSTEM"
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
统计表的统计信息.(关于如下的函数,可以参考Oracle官方文档)
SQL> begin dbms_stats.gather_table_stats(user, 'COLOCATED');
2 end;
3 /
PL/SQL 过程已成功完成。
1
2
3
4
5
在创建一张表,数据同表colocated。
SQL> create table disorganized
2 as
3 select x,y
4 from colocated
5 order by y;
表已创建。
1
2
3
4
5
6
7
创建主键
SQL> alter table disorganized
2 add constraint disorganized_pk
3 primary key(x);
表已更改。
1
2
3
4
5
对表colocated进行统计信息收集
SQL> begin dbms_stats.gather_table_stats(user, 'DISORGANIZED');
2 END;
3 /
PL/SQL 过程已成功完成。
1
2
3
4
5
第一步,看看有序的物理组织对使用索引进行查询的影响
下面来看看这两个存有相同数据的表的查询性能,打印结果在这里不再展示,只展示查询语句和执行计划以及统计结果。
SQL> set autotrace on;
SQL> set timing on;
SQL> select * from colocated where x between 20000 and 40000;
1
2
3
已用时间: 00: 00: 30.11
执行计划
----------------------------------------------------------
Plan hash value: 1550765370
--------------------------------------------------------------------------------
| Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time |
--------------------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 20002 | 1582K| 282 (0)| 00:00:04 |
| 1 | TABLE ACCESS BY INDEX ROWID| COLOCATED | 20002 | 1582K| 282 (0)| 00:00:04 |
|* 2 | INDEX RANGE SCAN | COLOCATED_PK | 20002 | | 43 (0)| 00:00:01 |
--------------------------------------------------------------------------------
Predicate Information (identified by operation id):
---------------------------------------------------
2 - access("X">=20000 AND "X"<=40000)
统计信息
----------------------------------------------------------
0 recursive calls
0 db block gets
2900 consistent gets
0 physical reads
0 redo size
1893673 bytes sent via SQL*Net to client
15078 bytes received via SQL*Net from client
1335 SQL*Net roundtrips to/from client
0 sorts (memory)
0 sorts (disk)
20001 rows processed
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
从上可以看到,
“2900 consistent gets”获取数据执行了2900次I/O
已用时间: 00: 00: 30.11
第二步,看看无序的物理组织对使用索引进行的查询产生的影响
来看看对照组
SQL> select/*+ index ( disorganized disorganized_pk) */ * from disorganized
2 where x between 20000 and 40000;
已用时间: 00: 00: 32.04
执行计划
----------------------------------------------------------
Plan hash value: 2594580634
--------------------------------------------------------------------------------
| Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time |
--------------------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 20002 | 1582K| 20039(1)| 00:04:01 |
| 1 | TABLE ACCESS BY INDEX ROWID| DISORGANIZED | 20002 | 1582K| 20039(1)| 00:04:01 |
|* 2 | INDEX RANGE SCAN | DISORGANIZED_PK | 20002 | | 43(0)| 00:00:01 |
--------------------------------------------------------------------------------
Predicate Information (identified by operation id):
---------------------------------------------------
2 - access("X">=20000 AND "X"<=40000)
统计信息
----------------------------------------------------------
0 recursive calls
0 db block gets
21359 consistent gets
0 physical reads
0 redo size
1893673 bytes sent via SQL*Net to client
15078 bytes received via SQL*Net from client
1335 SQL*Net roundtrips to/from client
0 sorts (memory)
0 sorts (disk)
20001 rows processed
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
从上可以看到,
“21359 consistent gets”获取数据执行了21359次I/O
已用时间: 00: 00: 32.04
SQL> select a.index_name,
2 b.num_rows,
3 b.blocks,
4 a.clustering_factor
5 from user_indexes a, user_tables b
6 where index_name in ('COLOCATED_PK', 'DISORGANIZED_PK')
7 and a.table_name = b.table_name
INDEX_NAME NUM_ROWS BLOCKS CLUSTERING_FACTOR
------------------------------ ---------- ---------- -----------------
COLOCATED_PK 100000 1191 1190
DISORGANIZED_PK 100000 1191 99930
1
2
3
4
5
6
7
8
9
10
11
结果分析:
上述两句SQL都走了索引,表中存储的数据都相同,查询的结果集也相同,但是查询时间差别好大。对于物理上共同放置的数据(COLOCATED),查询时间大幅下降。在某种情况下,使用这个索引可能很不错,但是在另外一种情况下它却不能很好的工作。
补充说明:
关于CLUSTERING_FACTOR ,该数值越接近BLOCKS ,则说明rows越有序;
反之,如果该数值越接近NUM_ROWS , 则说明rows越无序。
(This defines how ordered the rows are in the index. If CLUSTERING_FACTOR approaches the number of blocks in the table, the rows are ordered. If it approaches the number of rows in the table, the rows are randomly ordered. In such a case (clustering factor near the number of rows), it is unlikely that index entries in the same leaf block will point to rows in the same data blocks. 参看原文)
如何减小CLUSTERING_FACTOR 值呢?解决方法:
1.使用索引组织表(index organized table, IOT)。存储在堆中的表示无组织的,IOT中的数据则是按主键存储和排序。
2.重建该表。
实验二、全表扫描比使用索引更快的例子
再来个测试
SQL> select * from disorganized where x between 20000 and 40000
已用时间: 00: 00: 31.49
执行计划
----------------------------------------------------------
Plan hash value: 2727546897
--------------------------------------------------------------------------------
| Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time |
--------------------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 20002 | 1582K| 326 (1)| 00:00:04|
|* 1 | TABLE ACCESS FULL| DISORGANIZED | 20002 | 1582K| 326 (1)| 00:00:04 |
--------------------------------------------------------------------------------
Predicate Information (identified by operation id):
---------------------------------------------------
1 - filter("X"<=40000 AND "X">=20000)
统计信息
----------------------------------------------------------
218 recursive calls
0 db block gets
2550 consistent gets
1195 physical reads
0 redo size
1813725 bytes sent via SQL*Net to client
15079 bytes received via SQL*Net from client
1335 SQL*Net roundtrips to/from client
4 sorts (memory)
0 sorts (disk)
20001 rows processed
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
这个测试说明在某些情况下,全表扫描快于使用索引查询。
其它补充:
先看看我的数据库中block的大小
SQL> show parameter db_block_size
NAME TYPE VALUE
------------------------------------ ----------- ------------------------------
db_block_size integer 8192
1
2
3
4
5
可以看到block大小为8k。
下面看看表中每行占用空间大小
SQL> select vsize(x),vsize(y) from colocated where rownum=1;
VSIZE(X) VSIZE(Y)
---------- ----------
2 75
1
2
3
4
5
可以看到,随机的某一行占用总计77个字节。(number类型占用空间很少是因为其按照有效数字,正负号,小数位来存储的。所以有效数字越多,占用空间越大)
所以,可以看到,每个块(block)中可以存储多行数据。所以,如果数组是随机存储的,那么如果通过索引访问,则很多块会被重复读取,导致访问变慢。
block是oracle中最小的逻辑存储单元。如图(引用自oracle官网)
本文参考《Oracle_Database_9i10g11g编程艺术深入数据库体系结构》第2版,Thomas Kyte著,苏金国 王小振等译,327~405页。
---------------------
